Product description

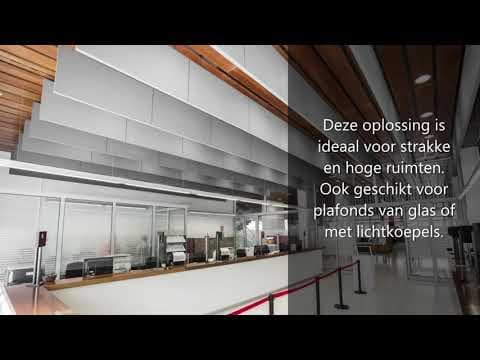

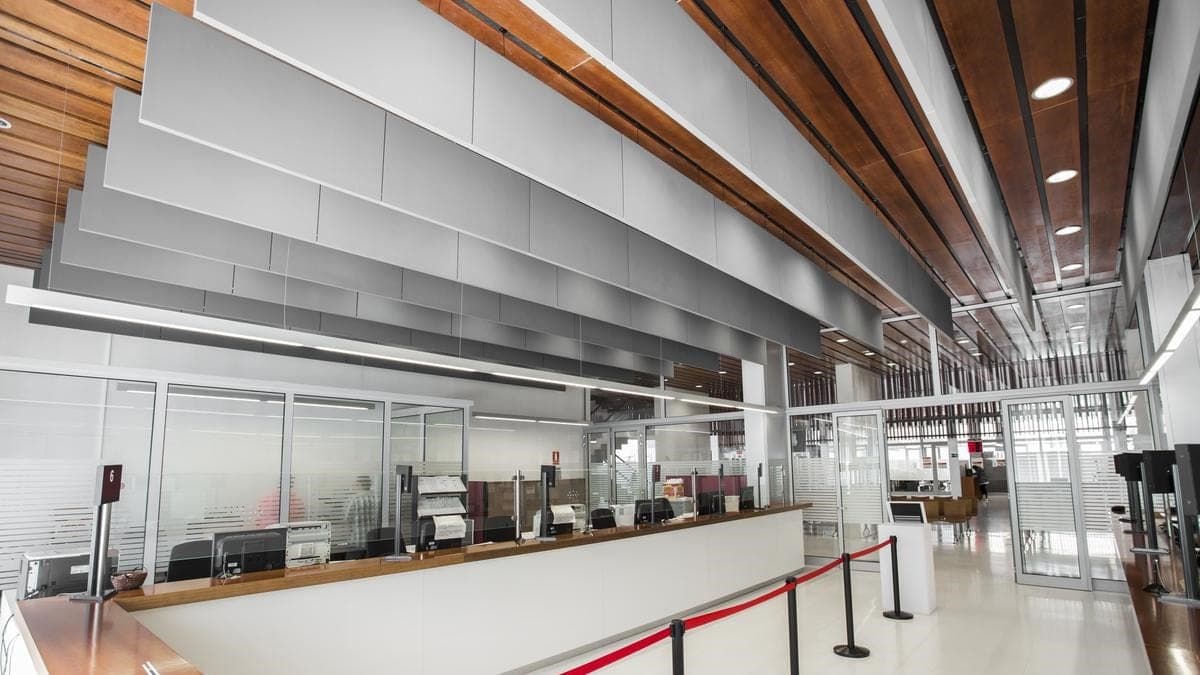

The EASYceiling Baffle is an acoustic baffle for vertical installation on the ceiling. The baffle has no frame and this gives the element a very nice and clean appearance. This solution is ideal for sleek and high rooms. Also suitable for glass ceilings or skylights. Available in six different sizes with a choice of twenty-two colours.

The EASYceiling Baffle has a glass wool core and has a very high absorption value. The baffles are available online with a pre-screwed hook and loose hangers. On request it is also possible to order the baffles with one of the two matching suspension systems. This allows the baffles to be hung in straight lines.

Order / Quote

You can order the EASYceiling Baffle online with a pre-screwed hook that you hang from hangers. Eyelets for the ceiling are not included.

The baffles are also available with an installation system. Based on your space and application, we can provide a quote for the right system.

Dimensions

The EASYceiling Baffle is available in two different lengths, each with three different widths and a fixed thickness of 40 mm.

Dimensions (L x W x T):
1200 x 200 x 40 mm
1200 x 300 x 40 mm
1200 x 600 x 40 mm
1800 x 200 x 40 mm
1800 x 300 x 40 mm
1800 x 600 x 40 mm

Colours

The EASYceiling Baffle is available in the following colours:

Installation

Hook + hanger

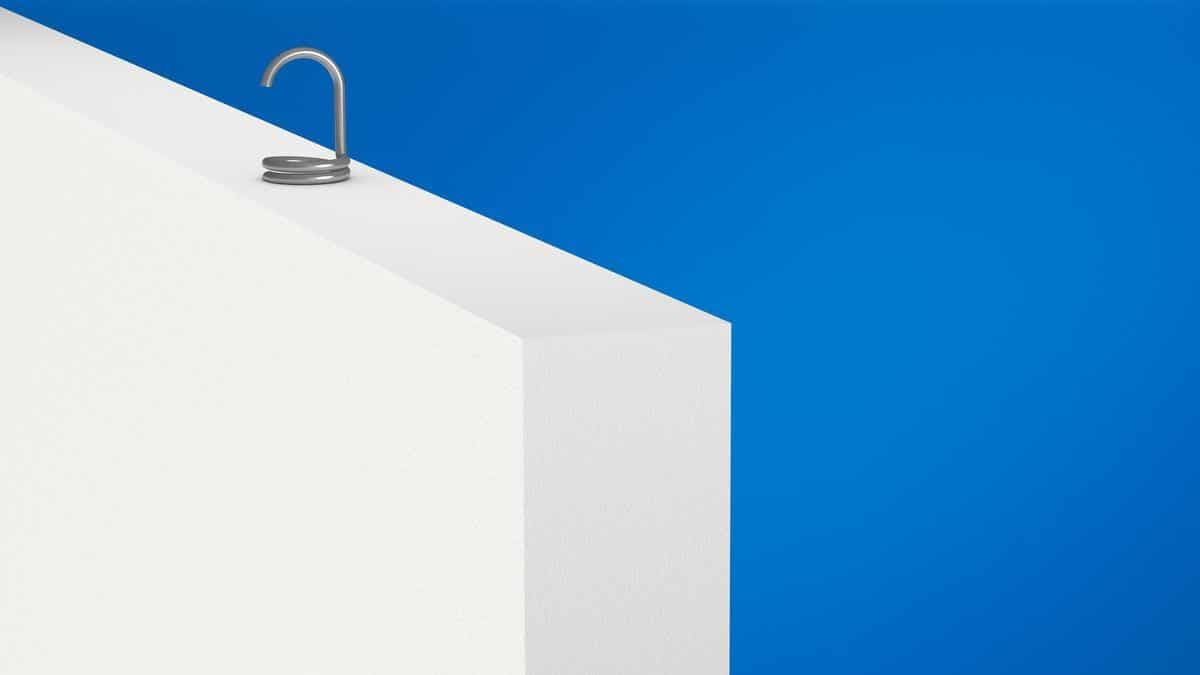

The EASYceiling Baffle comes standard with two hooks screwed in. These hooks are already placed 200mm from the side. The hooks are inside the baffle and cannot be moved.  You choose the type of hanger yourself.

System

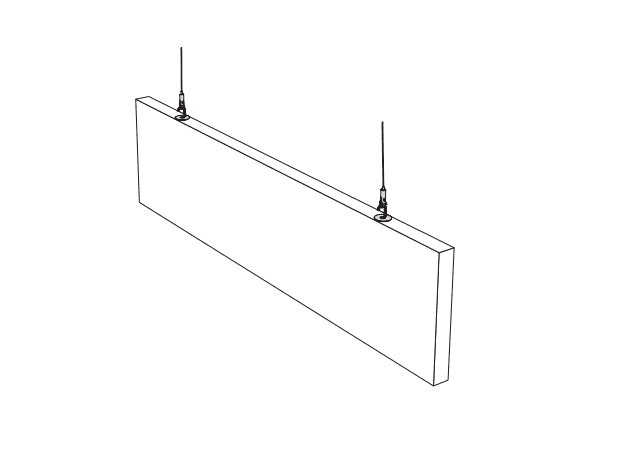

On request, it is also possible to hang the baffles with one of two suspension systems. Here, you can choose to place the baffles directly on the ceiling with a rail, or with cable hangers on a lowered suspension system. Please contact us for more information.


Ecophon Solo Baffle - montage

Minimum purchase

The baffles in the colour White Frost are sold per box. The other colours have a minimum order of 40 pieces. The content of a box differs per size.

Box content (per size):
1200 x 200 x 40 mm: 10 stuks
1200 x 300 x 40 mm: 10 stuks
1200 x 600 x 40 mm: 5 stuks
1800 x 200 x 40 mm: 8 stuks
1800 x 300 x 40 mm: 8 stuks
1800 x 600 x 40 mm: 4 stuks

Fire resistance

The EASYceiling Baffles are fire resistant according to EN 13501-1 class A2-s1,d0.

Absorption value

Other properties

– Humidity: Class A, relative humidity 70% and 25°C, according to EN 13964:2014

– Cleaning: the baffles can be dusted daily with a hoover or cleaned with a damp cloth
