Ecophon | Master
Glued acoustic ceiling panels
At the moment, you cannot order this product through our webshop. Please contact us by requesting a quote or asking a question using the buttons below.
Adhesive
Two types of finishes
Core of glass wool
Product description
The Ecophon Master B and SQ panels offer excellent noise-absorbing value without a lot of pace being needed. Because the panels are glued directly onto the constructional ceiling, the panels are very suitable for spaces with a low height. The panels are 4 cm thick and are sold per 10 units (60 x 60 cm) or 6 units (120 x 60 cm).
Glueable
Two types of finishes
Core of glass wool
Difference between Ecophon Master B and SQ
The difference between the Master B and Master SQ panels is aesthetical:

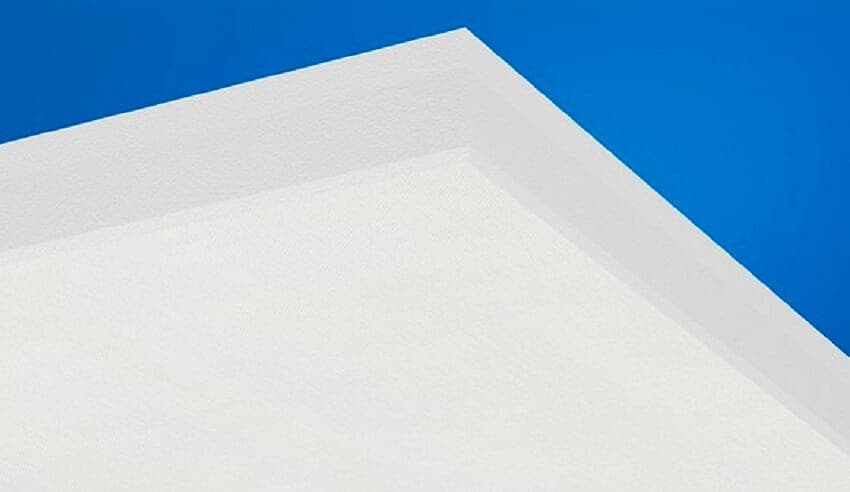

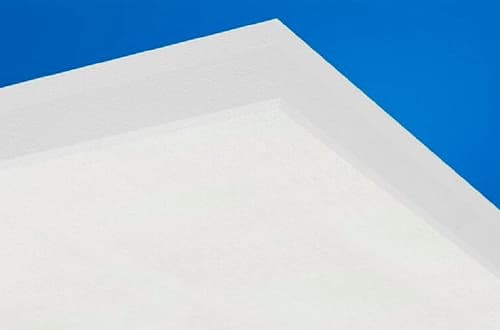

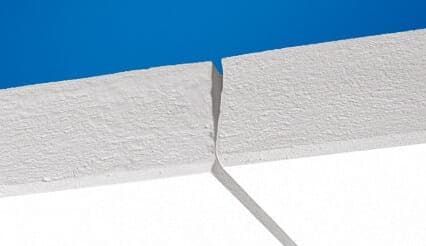

The Master B panels contain a groove on the sides and the front meaning they can be placed directly next to other with a beautiful result.

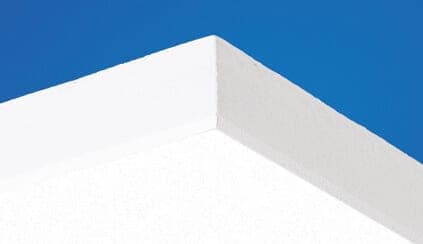

The Master SQ panels do not contain a groove meaning they mainly offer a beautiful result if mounted with mutual space.
Colours
The Ecophon Master B and Ecophon Master SQ panels are deliverable in white.
Characteristics
The panels are constructed from glass wool with a high density according to the 3RD Technology.
The visible side of the panel is finished with Akutex FT coating and the back of the panel is provided with glass fleece.
The sides are painted.
The weight is approximately 5 kg/m².
The Ecophon Master B panels are finished in a flat manner with narrow grooves (placed against each other during mounting) on the visible side.
Assembly
The panels can be easily adjusted to size
The panels can be mounted with mounting adhesive
Purchase
The glueable panels are sold per sets of 10 units (60 x 60 cm) or 6 units (120 x 60 cm).
Fire resistance
The panels’ core of glass wool is tested and classified as non-flammable in conformity with EN ISO 1182.

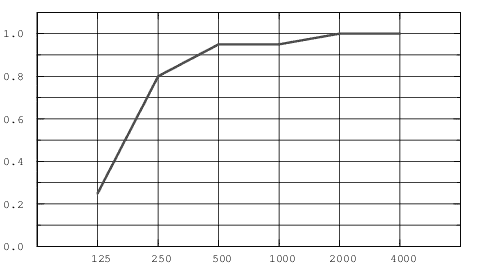

Absorption value
At the moment, you cannot order this product through our webshop. Please contact us by requesting a quote or asking a question using the buttons below.
Adhesive
Two types of finishes
Core of glass wool
