Product description

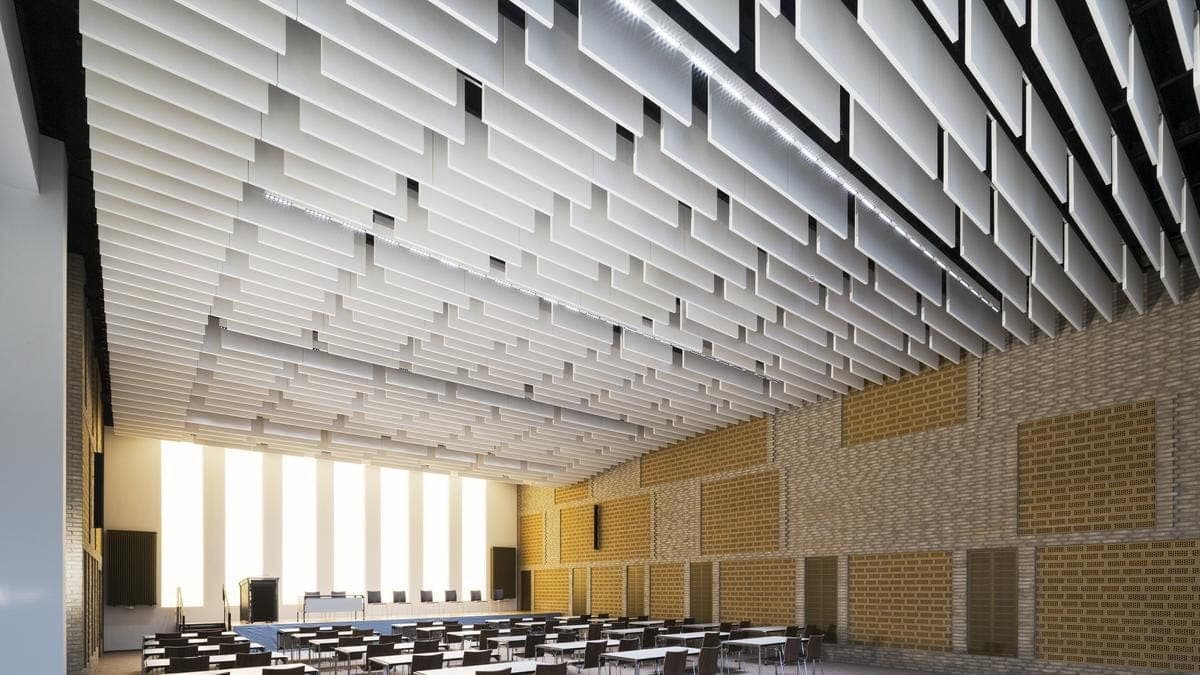

Ecophon Solo baffle is an acoustic baffle without frame. The baffles are hung at right angles to the ceiling. This makes them ideal for high rooms and ceilings through which light passes. It is also an aesthetically pleasing acoustic solution.

The Solo baffle consists of a glass wool core and has a very high absorption value. The baffles can be easily hung directly next to each other, using one of the two associated suspension systems. This creates clean lines.  The baffles are available in various sizes with a choice of sixteen colours.

Order / quotation

The Solo Baffle comes with a complete installation system and cannot be ordered online for this reason.  Based on your space and application, we can make you an offer for the right system. Of course, we can also provide installation.

Dimensions

Ecophon Solo Baffle is available in two different lengths and three different widths with a fixed thickness of 40 mm.

Dimensions (L x W x T):
1200 x 200 x 40 mm
1200 x 300 x 40 mm
1200 x 600 x 40 mm
1800 x 200 x 40 mm
1800 x 300 x 40 mm
1800 x 600 x 40 mm

Colours

The Solo Baffle is available in sixteen standard colours.

Ecophon Solo Baffle - colours

Absorption values

Ecophon Solo Baffle - Absorption values

Installation

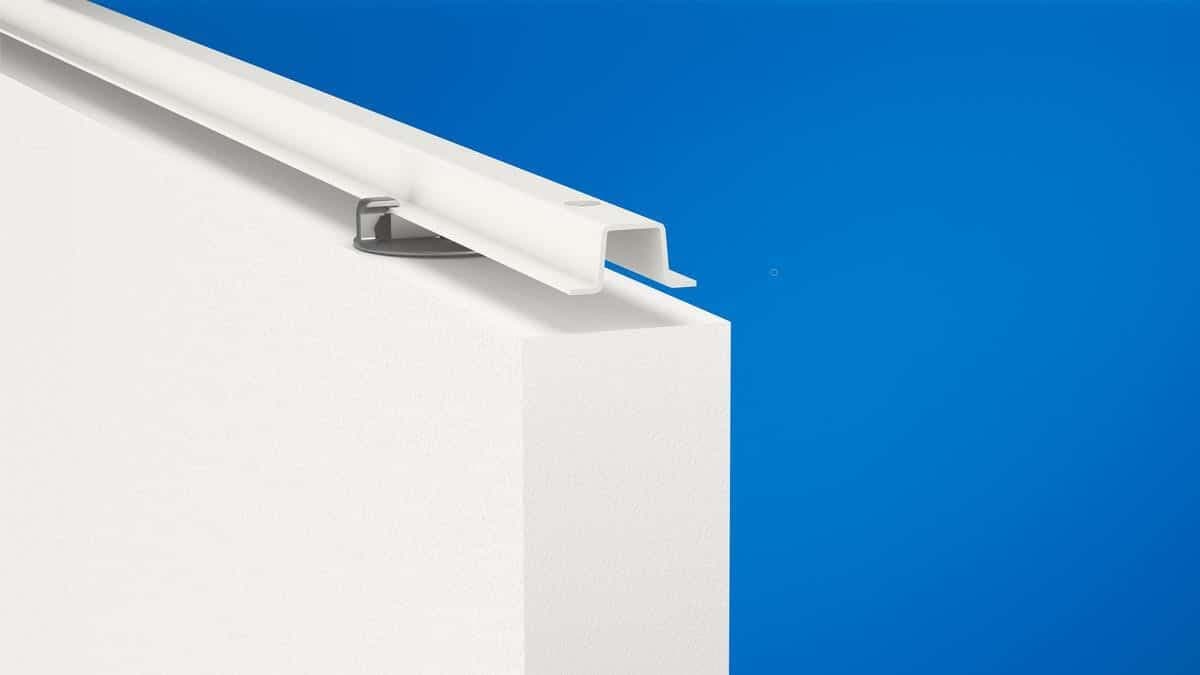

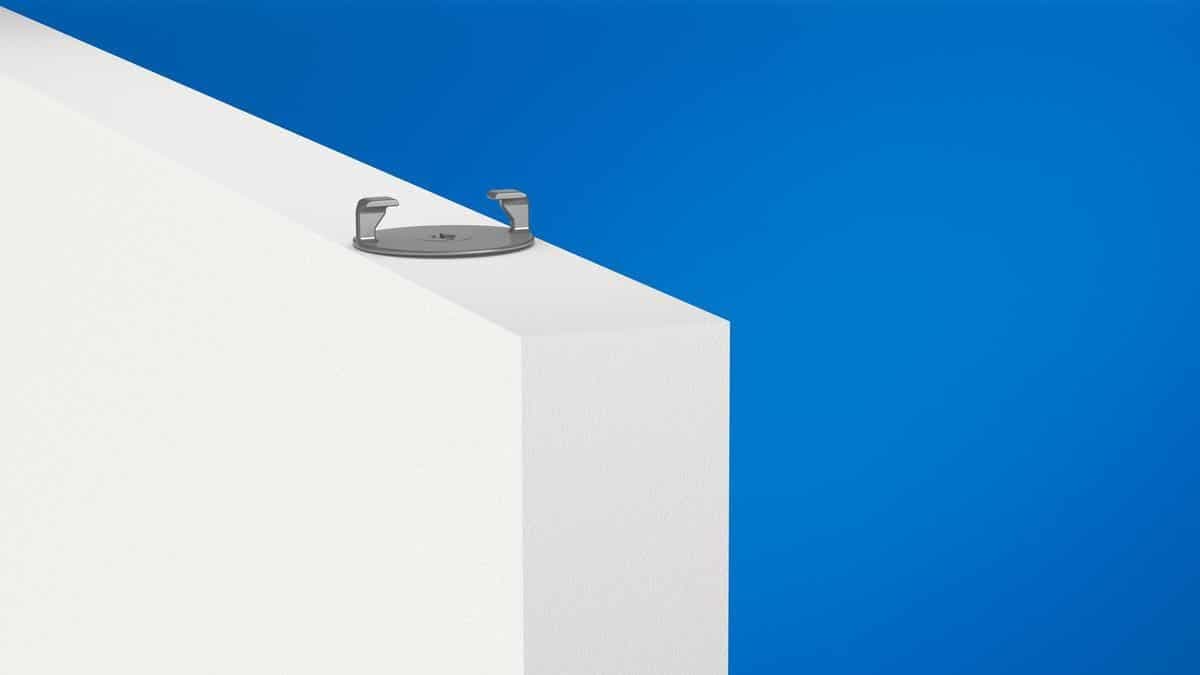

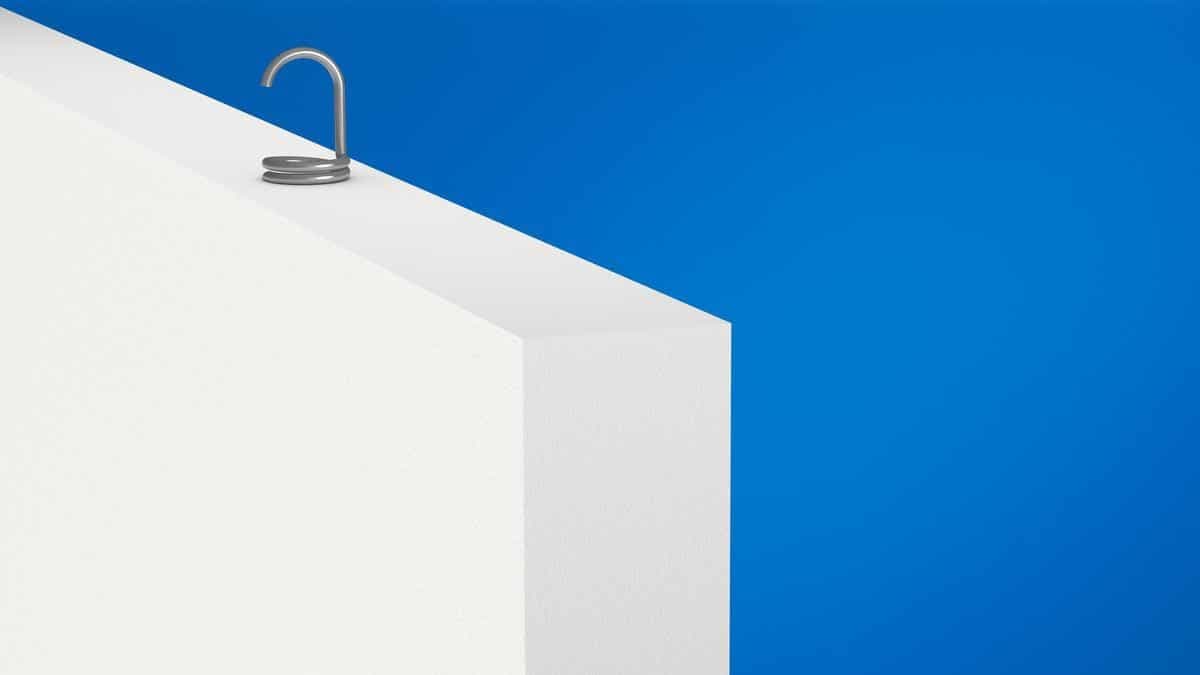

The Solo Baffles can be mounted in two different ways: directly to the ceiling with a rail or with cable hangers.
Ecophon Solo Baffle - installation

Ecophon Solo Baffle - installation

Minimum purchase

The Solo Baffles are sold per box. The content of a box differs per size.

Minimum order per size::
1200 x 200 x 40 mm: 10 pieces
1200 x 300 x 40 mm: 10 pieces
1200 x 600 x 40 mm: 5 pieces
1800 x 200 x 40 mm: 8 pieces
1800 x 300 x 40 mm: 8 pieces
1800 x 600 x 40 mm: 4 pieces

Fire safety

Ecophon Solo Baffles are fire resistant according to EN 13501-1 class A2-s1,d0.

Other properties

– Humidity: Class A, relative humidity 70% and 25°C, according to EN 13964:2014.

– Cleaning: the baffles can be dusted daily with a hoover or cleaned with a damp cloth.

Ecophon | Solo baffle

from € 46,99 excl. VAT

Acoustic baffle with glass wool core.
