Product description

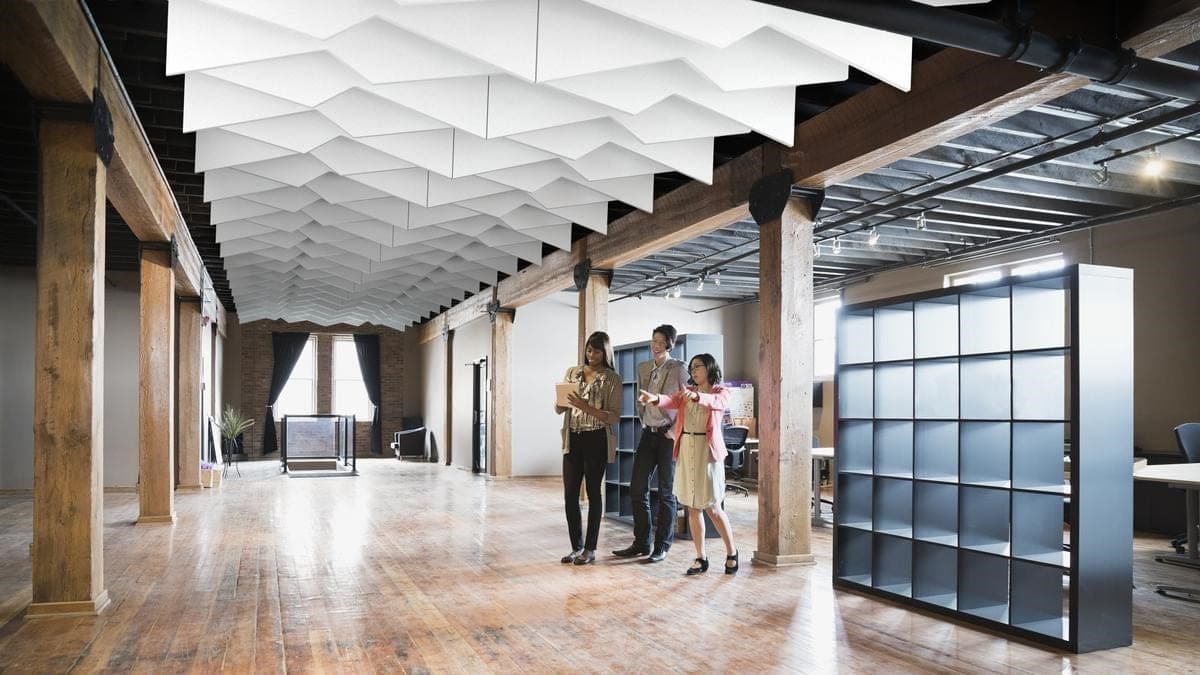

Ecophon Solo Baffle ZigZag is a creative acoustic ceiling solution. By hanging multiple baffles you create a unique ZigZag pattern. This baffle (vertically suspended element) is acoustically very high quality due to a glass wool core.  A beautiful combination of acoustics and design for the ceiling.

The Ecophon Solo Baffle ZigZag is available in 300 mm and 600 mm high. You can choose from several colours, standard in White.

Order/ Quotation

Unfortunately, this solution cannot be ordered online. The Solo Baffle ZigZag comes with a complete installation system. We therefore ask you to request a quotation.  Based on your space and application, we can provide a quotation for the right system. Installation by one of our fitters is optional.

Dimensions

Ecophon Solo Baffle ZigZag is available in two fixed dimensions.

Dimensions (L x W x T):
1800 x 300 x 40 mm
1800 x 600 x 40 mm

Colours

The Solo Baffle ZigZag is available in sixteen standard colours.

Ecophon Solo Baffle ZigZag - colours

Absorption values

Ecophon Solo Baffle ZigZag - Absorption values

Installation

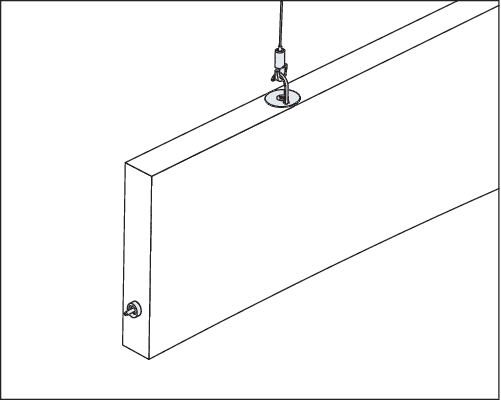

The baffles can be installed in two ways: on a rail mounted directly to the ceiling or with adjustable cable hangers.

Ecophon Solo Baffle ZigZag - installation

Ecophon Solo Baffle ZigZag - installation

Minimum purchase

The baffles are only sold per box of 4 pieces.

Fire safety

Ecophon Solo Baffle ZigZag is fire resistant according to EN 13501-1 class A2-s1,d0.

Other properties

– Humidity: Class A, relative humidity 70% and 25°C, according to EN 13964:2014

– Cleaning: the baffles can be dusted daily with a vacuum cleaner or cleaned with a damp cloth.
